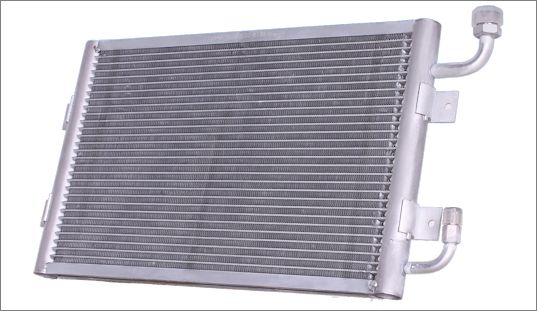

Micro Channel Heat Exchanger

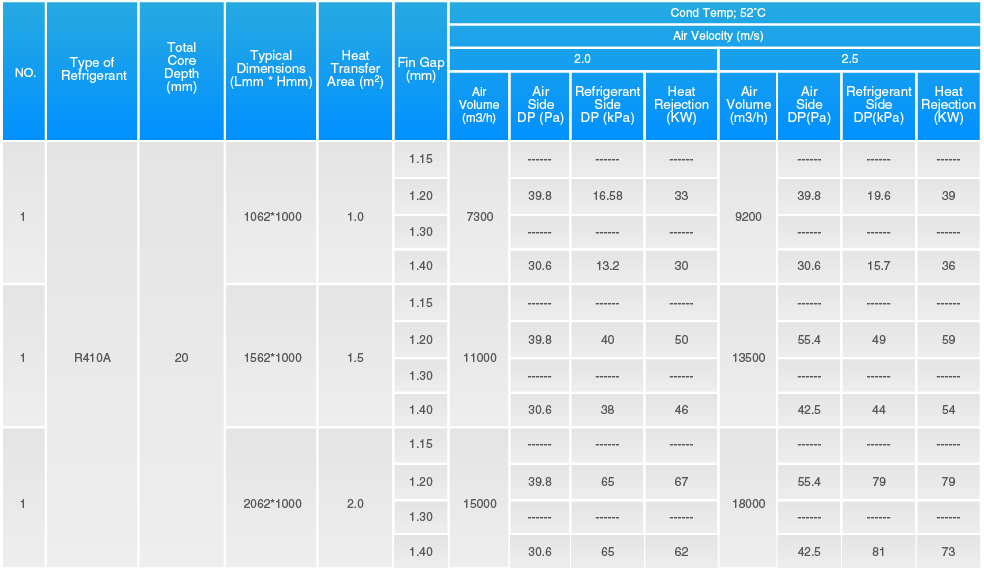

Condenser coil

Slab coil
Coil with various bending radius
Residential and commercial HVAC/R

Application:

• Refrigerant  R410A, R134A, R22, R407C, R404A
• Design pressure  650psi(4.5MPa)
• Ambient air temperature  -30°Cto 72° C (-22 °F to 1 61.6°F)
• Expected refrigerant temperature  -30°Cto 121°C (-22 °F to 250°F)
• Storage temperature  -30°CCto 121°C (-22°F to 250°F)

Feature:

• Up to 50% less refrigerant charge
• More than 30% higher HT efficiency
• Up to 30% lower airside DP
• Lighter in weight, less volume: up to 50%
• 100% Aluminum, easy to recycle
• Minimum performance decrease with lifetime (100% brazed)
• Minimum galvanic corrosion (100% Aluminum)

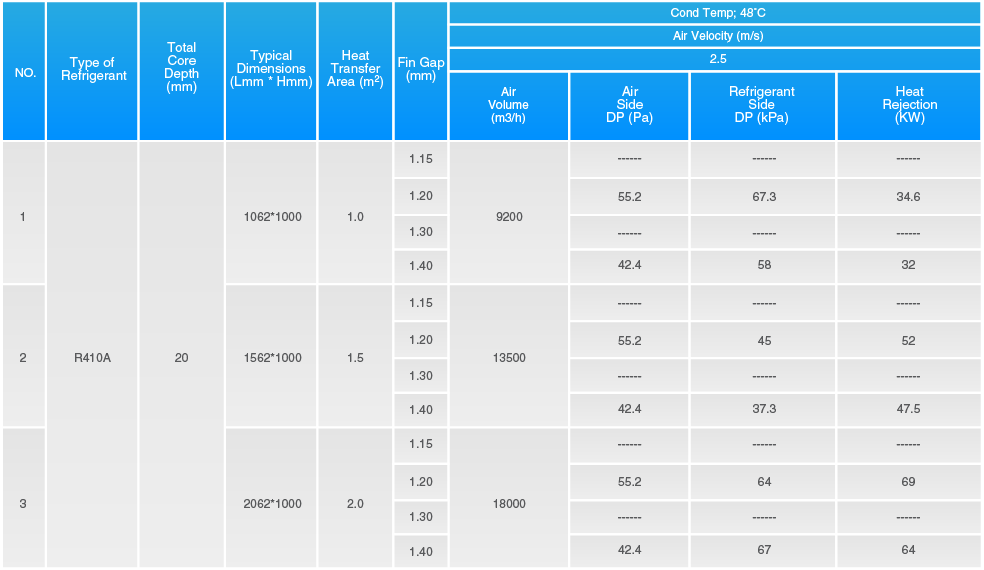

Evaporator Coil

Slab coil / A-Coil
Residential and commercial HVAC/R
Indoor air conditioner and heat pump capability

Application:

• Refrigerant  R410A, R134A, R22, R407C, R404A
• Design pressure  650psi(4.5MPa)
• Ambient air temperature  -30°C to 72°G (-22 °F to 161.6 °F)
• Expected refrigerant temperature -30°C to 121°C(-22 °F to250 °F)
• Storage temperature  -30°C to 121°C (-22 °F to 250 °F)

A-Coil (Tube bending)

Feature:

• Up to 50% less refrigerant charge
• More than 30% higher HT efficiency
• Up to 30% lower airside DP
• Lighter in weight, less volume: up to 50%
• 100% Aluminum, easy to recycle
• Minimum performances decrease with lifetime (100% brazed)
• Minimum galvanic corrosion (100% Aluminum)
• Special tube bending structure for A-coil
• Special design for efficient refrigerant distribution
• Special fin design for good water drainage
